As a professional ferrite magnet manufacturer, Nide had already developed various products by own advanced ferrite magnet technology, based on JC-Y3932,JC-Y3939,JC-Y4041,JC-Y4127,JC-Y4231,JC-Y3744,JC-Y3849,JC-Y4240 materials.
Nide products are widely used in the various fields, especially automobile industry.
Nide will continue to research and design more products for application to various industries to meet the requirement of different customer.

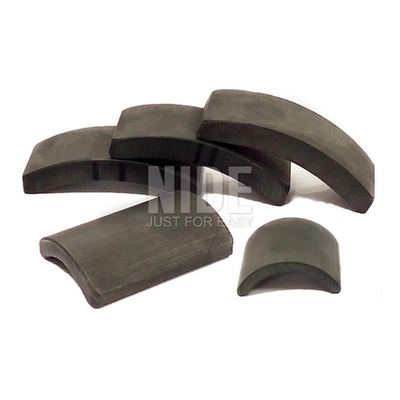

Magnets for motorcycle magneto
Magnets for motorcycle magneto are applicable for 4 poles, 6 poles. 8 poles magneto based on Y30H-1, Y32,Y33 materials grade.
Physical characteristics of permanent ferrite& technical property
|
Item |
Symbol |
Unit |
Value |
Note |
|
Temperature range |
— |
℃ |
-40~+80 |
|
|
Expand coefficient |
αR |
K-1 |
7~15X10-6 |
|
|
Density |
d |
g/cm³ |
4.5~5.1 |
|
|
Resistivity |
p |
Ω·cm |
104 ~ 108 |
|
|
Curie temperature |
θc |
℃ |
460~480 |
|
|
Temperature coefficient of remanence |
αBr |
K-1 |
-(0.18~0.20)% |
0~100 |
|
Temperature coefficient of coercive force |
αHCJ |
K-1 |
(0.20~0.50)% |
0~100 |
|
Recoil permeability |
μ |
— |
1.05~1.30 |
|
|
Hardness |
Hv |
— |
480~580 |
Competitive advantages
1. Ourmagnet has a wide application, such as automotive industry, household appliances, power tools and etc.
2. We directly supply our magnets to more than 50 countries.
3. We have a wide range of magnet.
4. We could customize magnet for our customer.
Information needed for magnet inquiry
It will be better if customer could send us detailed drawing including below information.
1. Magnet drawing
2. Magnet material
2. Magnet dimension: width, thickness, tolerance.
3. Magnet grade
4. Magnet applications
5. Required quantity: normally its weight or quantity
6. Other technical requirement.
If you are not sure which grade is proper, please contact our engineer. We can also customize according to your needs
We can offer a variety of NdFeB Magnet and Ferrite Magnet, If you need special magnetic tiles, we can also customize according to your needs.
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.
| Customerized service | 1. Customized product design and manufacturing |
| 2. Customized tranning | |
| 3.Technical suggestions | |
| After-sales service | 1. Warranty Period: 12 month usually |
| 2. Overseas service center available | |
| 3. Engineers available to service overseas |
Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor, series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
